Description

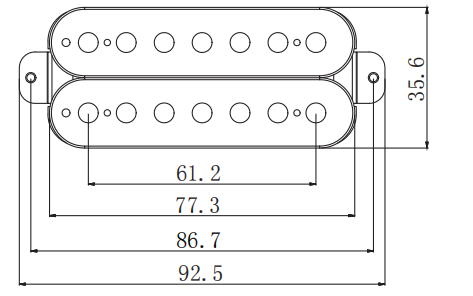

P-2011 is a 6-string humbucker pickup with a 77.3 × 35.6 mm body, 86.7 mm mount spacing, and 61.2 mm pole spacing.
Pickup specs
- String count 6-string
- Overall width 35.6 mm (1.402 in)
- Overall length 92.5 mm (3.642 in)
- Mount spacing 86.7 mm (3.413 in)
- Reference Overall width including tabs 92.5 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Dual-coil humbucker with 6 pole pieces per coil
- Side mounting tabs with one hole each
- Outer pole spacing 61.2 mm
About measurements
- Mount hole spacing
-
86.7 mm (3.413 in)
Center-to-center distance between mounting holes on the bridge plate.
