Description

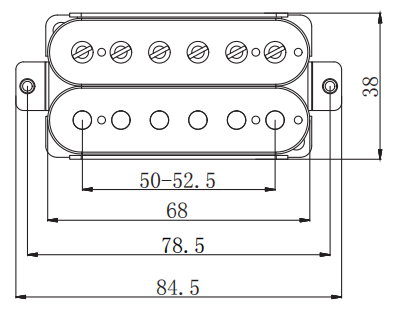

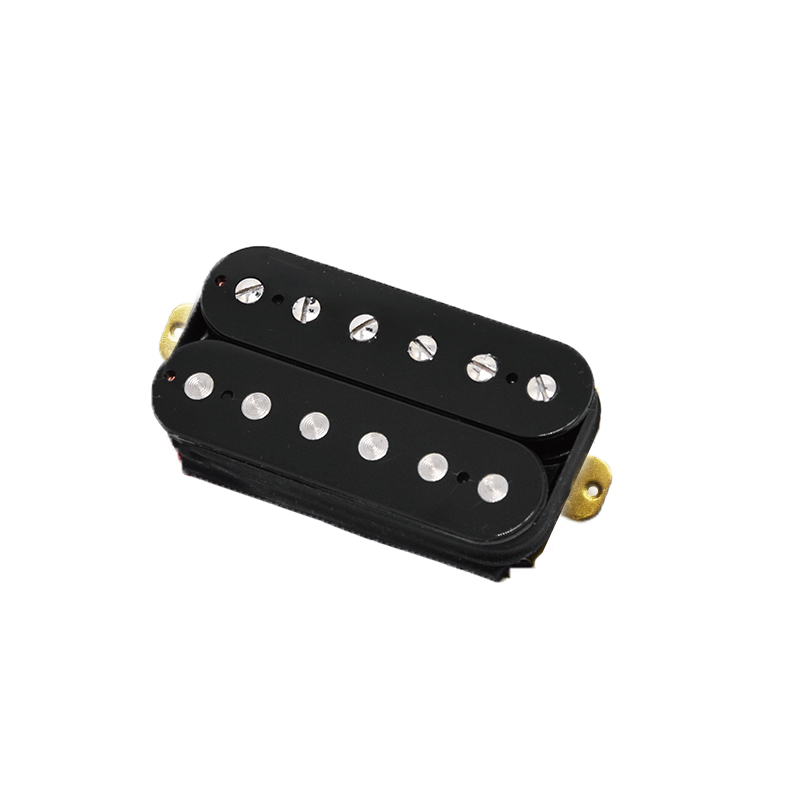

P-2012 is a 6-string humbucker pickup with a 68 × 38 mm body, 78.5 mm mount spacing, and 50–52.5 mm pole spacing.
Pickup specs
- String count 6-string
- Overall width 38 mm (1.496 in)
- Overall length 84.5 mm (3.327 in)
- Mount spacing 78.5 mm (3.091 in)
- Reference Overall width including tabs 84.5 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Dual-coil humbucker with 6 adjustable screw poles and 6 fixed slug poles
- Side mounting tabs with one hole each
- Outer pole spacing 50–52.5 mm
About measurements
- Mount hole spacing
-
78.5 mm (3.091 in)
Center-to-center distance between mounting holes on the bridge plate.
