QT-2002

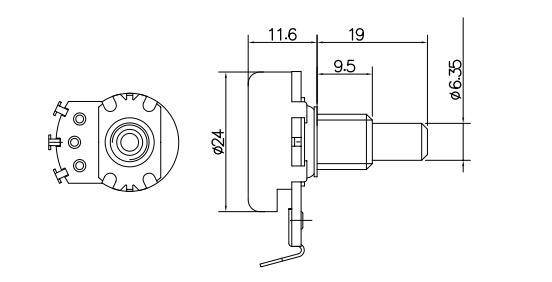

Technical drawingQT-2002
Description
QT-2002 24 mm potentiometer, φ6.35 mm solid shaft 19 mm long, 11.6 mm body depth.
Potentiometer specs
- Outer diameter φ24 mm
- Body height 11.6 mm (0.457 in)
- Shaft length 19 mm (0.748 in)
- Shaft diameter φ6.35 mm
- Reference Threaded bushing 9.5 mm; grounding tab.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Threaded bushing 9.5 mm; grounding tab.
Center-to-center distance between mounting holes on the bridge plate.
