QT-1001

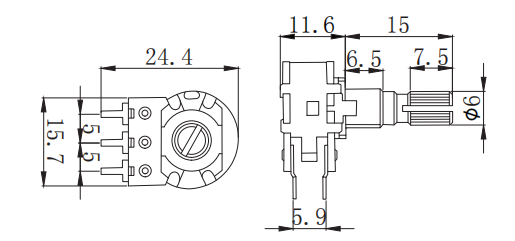

Technical drawingQT-1001
Description
QT-1001 mini potentiometer, 24.4 mm footprint, φ6 mm split shaft 15 mm long, 11.6 mm body depth.
Potentiometer specs
- Overall width 24.4 mm (0.961 in)
- Body height 11.6 mm (0.457 in)
- Shaft length 15 mm (0.591 in)
- Shaft diameter φ6 mm
- Reference Terminal spacing 5 mm; mounting leg spacing 5.9 mm; knurled section 7.5 mm.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 5 mm; mounting leg spacing 5.9 mm; knurled section 7.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
