QT-1005

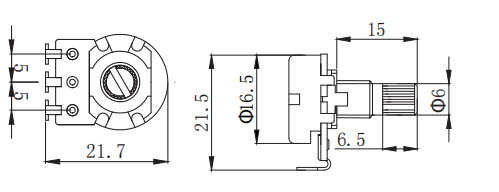

Technical drawingQT-1005
Description
QT-1005 16.5 mm potentiometer, 21.7 mm footprint, φ6 mm split shaft 15 mm long.
Potentiometer specs
- Outer diameter φ16.5 mm
- Overall width 21.7 mm (0.854 in)
- Overall height 21.5 mm (0.846 in)
- Shaft length 15 mm (0.591 in)
- Shaft diameter φ6 mm
- Reference Terminal spacing 5 mm; right-angle mounting bracket.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 5 mm; right-angle mounting bracket.
Center-to-center distance between mounting holes on the bridge plate.
