Description

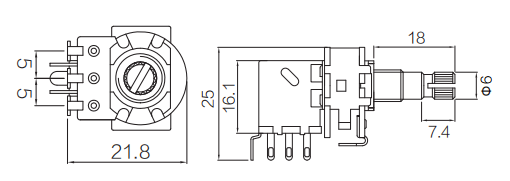

QT-1004 push-pull potentiometer, 21.8 mm footprint, φ6 mm shaft 18 mm long, 25 mm body height.
Potentiometer specs
- Overall width 21.8 mm (0.858 in)
- Body height 16.1 mm (0.634 in)
- Overall height 25 mm (0.984 in)
- Shaft length 18 mm (0.709 in)
- Shaft diameter φ6 mm
- Reference Terminal spacing 5 mm; switched rear section; knurled tip 7.4 mm.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 5 mm; switched rear section; knurled tip 7.4 mm.
Center-to-center distance between mounting holes on the bridge plate.
