QT-1003

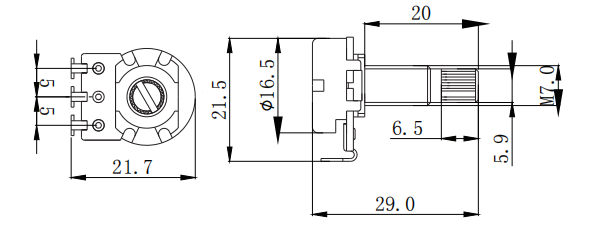

Technical drawingQT-1003
Description
QT-1003 potentiometer M7 bushing, φ16.5 mm body, φ5.9 mm knurled shaft 20 mm long, 29 mm overall depth.
Potentiometer specs
- Outer diameter φ16.5 mm
- Overall width 21.7 mm (0.854 in)
- Overall height 29 mm (1.142 in)
- Shaft length 20 mm (0.787 in)
- Shaft diameter φ5.9 mm
- Thread M7
- Reference Terminal spacing 5 mm; knurled section 6.5 mm.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal spacing 5 mm; knurled section 6.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
