QT-2004

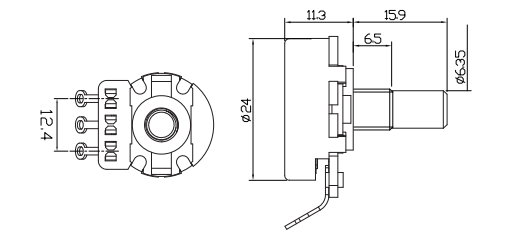

Technical drawingQT-2004
Description
QT-2004 24 mm potentiometer, φ6.35 mm shaft 15.9 mm long, 11.3 mm body depth, 12.4 mm terminal spread.
Potentiometer specs
- Outer diameter φ24 mm
- Body height 11.3 mm (0.445 in)
- Shaft length 15.9 mm (0.626 in)
- Shaft diameter φ6.35 mm
- Reference Terminal outer spread 12.4 mm; threaded section 6.5 mm.
Hardware
- Material Aluminum housing; shaft options: brass / aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Terminal outer spread 12.4 mm; threaded section 6.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
