MANDOLIN PARTS
Request a quote → TB-005-8
TB-005-8

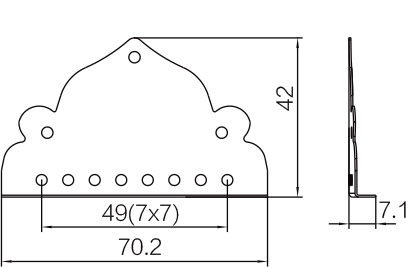

Technical drawingTB-005-8
Description
TB-005-8 mandolin tailpiece, 70.2 × 42 mm with eight string holes on 49 mm spread (7 mm pitch).
Tailpiece specs
- String count 8-string
- String spacing 7 mm (0.276 in)
- String spread 49 mm (1.929 in)
- Overall length 42 mm (1.654 in)
- Overall width 70.2 mm (2.764 in)
- Mount pattern Three peak mount holes; bottom flange depth 7.1 mm; 90° wrap profile.
Hardware
- Material Cast / stamped metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- String spacing
-
7 mm (0.276 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Three peak mount holes; bottom flange depth 7.1 mm; 90° wrap profile.
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
7 mm (0.276 in)
Center-to-center distance between adjacent strings at the tailpiece.
