MANDOLIN PARTS
Request a quote → TB-008
TB-008
TB-008
Loading 3D model…
Loading 3D model…
Description

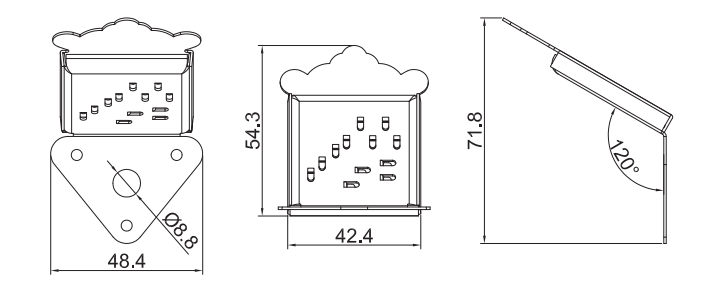

TB-008 mandolin tailpiece, 48.4 mm base, 42.4 × 54.3 mm cover, 71.8 mm total height at 120° bend.
Tailpiece specs
- String count 8-string
- Overall length 71.8 mm (2.827 in)
- Overall width 48.4 mm (1.906 in)
- Bottom width 42.4 mm (1.669 in)
- Mount pattern Scalloped cloud top edge; eight staggered string posts.
- Mount hole diameter φ8.8 mm
Hardware
- Material Cast / stamped metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Scalloped cloud top edge; eight staggered string posts.
Center-to-center distance between mounting holes on the bridge plate.
