MANDOLIN PARTS
Request a quote → TL-001
TL-001
TL-001
Loading 3D model…
Loading 3D model…
Description

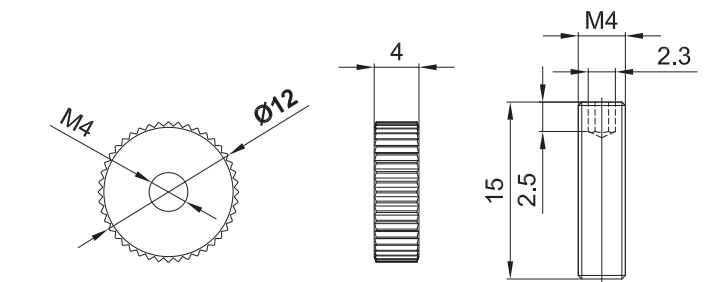

TL-001 tailpiece thumbwheel and post set, M4 × Ø12 knurled wheel (4 mm thick) on 15 mm post with 2.3 mm bore.
Tailpiece adjuster specs
- Outer diameter φ12 mm
- Thumbwheel thickness 4 mm (0.157 in)
- Post height 15 mm (0.591 in)
- Hole diameter φ2.3 mm
- Thread M4
- Reference M4 internal thread on post; 2.5 mm thread depth at top opening.
Hardware
- Material Brass / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
M4 internal thread on post; 2.5 mm thread depth at top opening.
Center-to-center distance between mounting holes on the bridge plate.
