W-2005
W-2005
Loading 3D model…
Loading 3D model…
Description

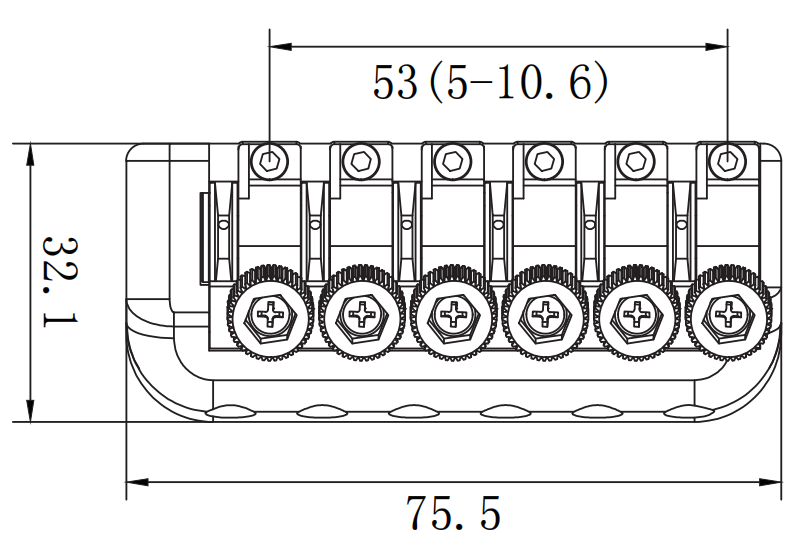

W-2005 is a 6-string headless guitar bridge with 10.6 mm spacing, 75.5 × 32.1 mm plate, and 53 mm string spread.
Headless bridge specs
- String count 6-string
- String spacing 10.6 mm (0.417 in)
- String spread 53 mm (2.087 in)
- Overall width 75.5 mm (2.972 in)
- Overall length 32.1 mm (1.264 in)
- Layout reference Mount hole spacing not dimensioned on drawing.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact low-profile baseplate
- Six independent saddle units with rear knurled tuning knobs
- Front-edge height adjustment screws on each saddle
About measurements
- String spacing
-
10.6 mm (0.417 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Mount hole spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
