BG-3004B

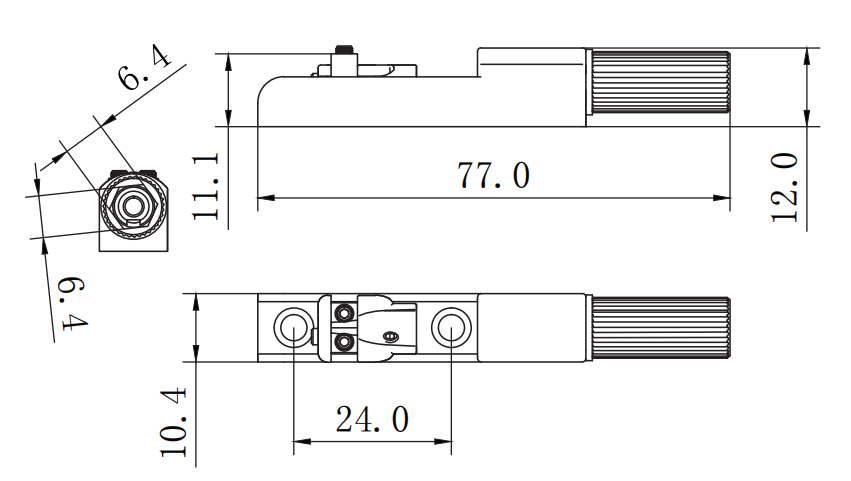

Technical drawingBG-3004B
Description
BG-3004B is a headless single-string bridge/tuner module, 10.4 mm wide, 77 mm long, with 24 mm pin spacing.
Module specs
- Configuration Headless bridge/tuner module
- Module length 77 mm (3.031 in)
- Module width 10.4 mm (0.409 in)
- Pin spacing 24 mm (0.945 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Single-string headless module
- Integrated knurled tuner barrel
About measurements
- String spacing
-
10.4 mm (0.409 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
24 mm (0.945 in)
Center-to-center distance between mounting holes on the bridge plate.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
