Description

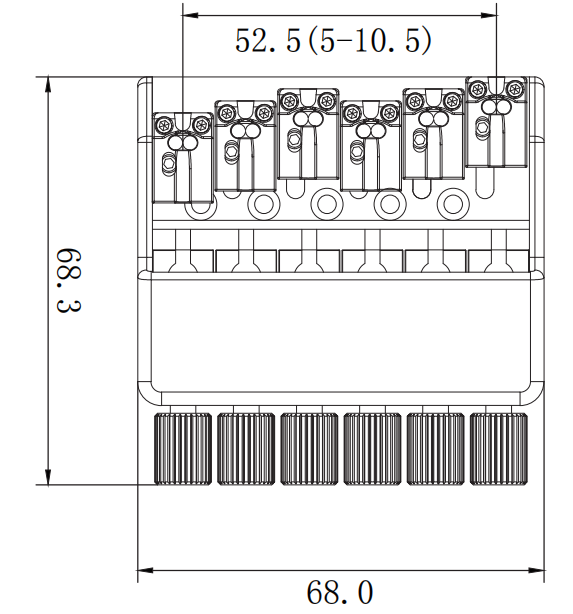

W-3001 is a 6-string headless guitar bridge with 10.5 mm spacing, 68.0 × 68.3 mm plate, and 52.5 mm string spread.
Headless bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Overall width 68 mm (2.677 in)
- Overall length 68.3 mm (2.689 in)
- Layout reference Five mounting holes shown in a row; hole diameter and spacing not dimensioned on drawing.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Square 68.0 mm × 68.3 mm footprint
- Integrated knurled tuning barrels
- Staggered saddle row with height adjustment screws
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Five mounting holes shown in a row; hole diameter and spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
