Description

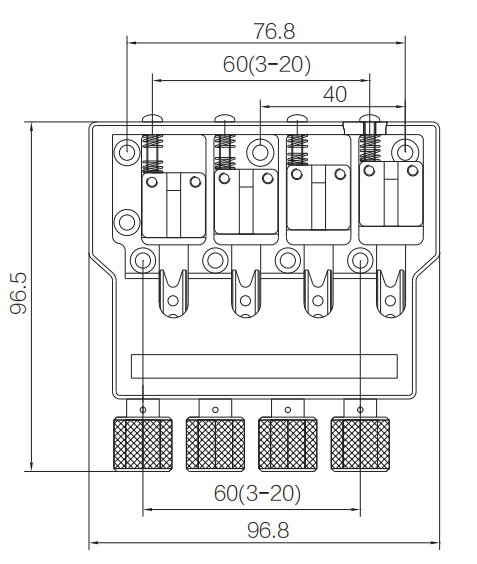

WB-1001 4-string headless bass bridge, 96.8 × 96.5 mm plate, 20 mm string spacing (60 mm spread), 76.8 mm top mount spacing.
Headless bridge specs
- String count 4-string
- String spacing 20 mm (0.787 in)
- String spread 60 mm (2.362 in)
- Overall width 96.8 mm (3.811 in)
- Overall length 96.5 mm (3.799 in)
- Mount spacing 76.8 mm (3.024 in)
- Layout reference Seven mounting holes on baseplate; lower tuner row on same 60 mm spread as saddles.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Four rear knurled fine tuners
- Individual intonation saddles with springs
About measurements
- String spacing
-
20 mm (0.787 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
76.8 mm (3.024 in)
Center-to-center distance between mounting holes on the bridge plate.
