HEADLESS BRIDGES
Request a quote → WB-1005
WB-1005
WB-1005
Loading 3D model…
Loading 3D model…
Description

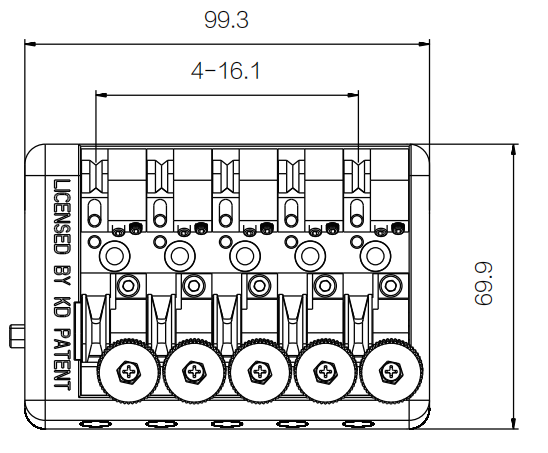

WB-1005 5-string headless bass bridge, 99.3 × 69.9 mm plate, 16.1 mm string spacing (64.4 mm spread).
Headless bridge specs
- String count 5-string
- String spacing 16.1 mm (0.634 in)
- String spread 64.4 mm (2.535 in)
- Overall width 99.3 mm (3.909 in)
- Overall length 69.9 mm (2.752 in)
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Licensed by KD patent marking on left flange
- Five integrated fine tuners
About measurements
- String spacing
-
16.1 mm (0.634 in)
Center-to-center distance between adjacent strings at the bridge.
