Description

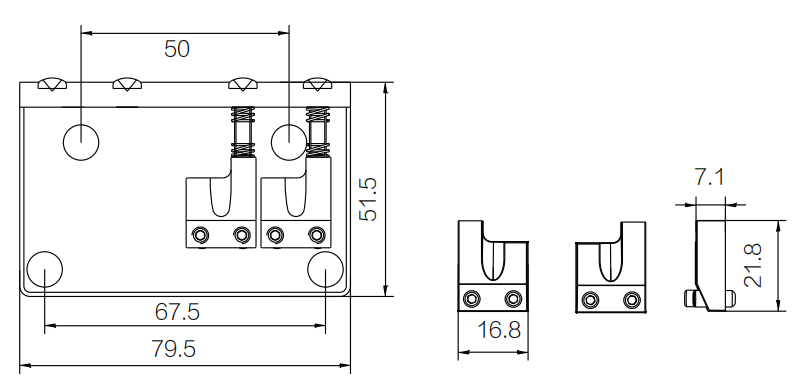

BA-1004 is a 4-string bass bridge with zinc saddles, 18 mm string spacing, and a 79.5 × 51.5 mm plate with trapezoidal four-hole mount.
Bridge specs
- String count 4-string
- String spacing 18 mm (0.709 in)
- Plate width 79.5 mm (3.13 in)
- Plate depth 51.5 mm (2.028 in)
- Mount pattern Lower holes 67.5 mm; upper holes 50 mm center-to-center
- Saddle material Zinc alloy
- Saddle diameter 16.8 mm (0.661 in)
- Saddle height 21.8 mm (0.858 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 18 mm string spacing
- Trapezoidal mount pattern
- Step-profile saddles
About measurements
- String spacing
-
18 mm (0.709 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Lower holes 67.5 mm; upper holes 50 mm center-to-center
Center-to-center distance between mounting holes on the bridge plate.
