BA-1005
BA-1005
Loading 3D model…
Loading 3D model…
Description

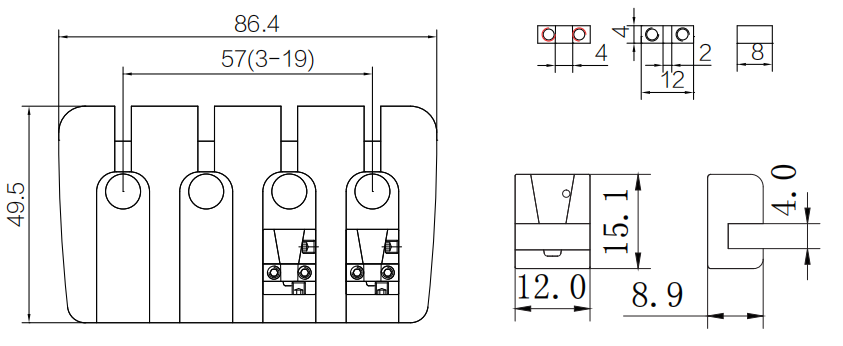

BA-1005 is a 4-string bass bridge with zinc saddles, 19 mm spacing (57 mm spread), and an 86.4 × 49.5 mm plate.
Bridge specs
- String count 4-string
- String spacing 19 mm (0.748 in)
- String spread 57 mm (2.244 in)
- Plate width 86.4 mm (3.402 in)
- Plate depth 49.5 mm (1.949 in)
- Saddle material Zinc alloy
- Saddle diameter 12 mm (0.472 in)
- Saddle height 15.1 mm (0.594 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 19 mm string spacing
- Individual top-loading saddles
- Rounded rear plate corners
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
