Description

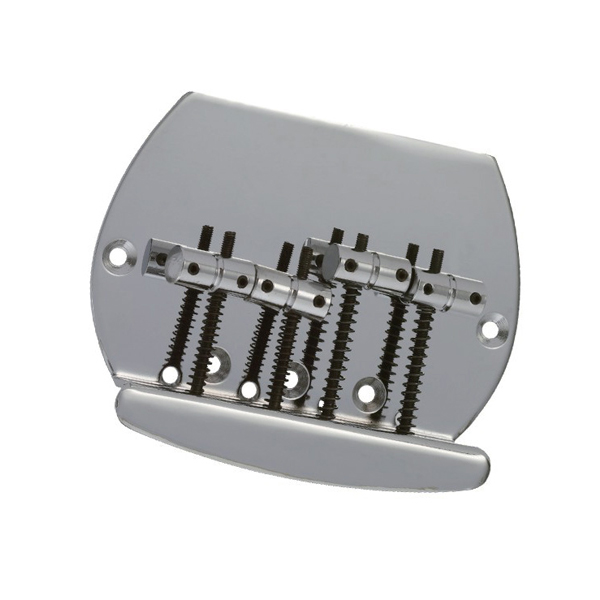

BA-1007 is a 4-string precision bass bridge with steel saddles and 19 mm string spacing. The 105 × 83 mm plate uses a 93 mm two-point mount pattern suited to replacement and OEM builds.

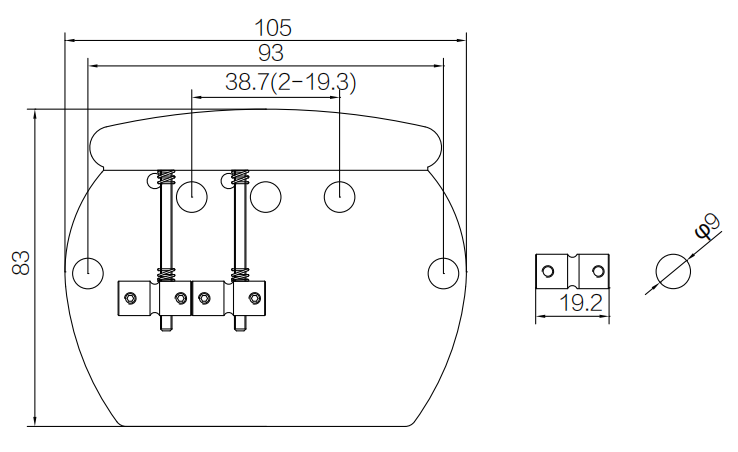

Bridge specs
- String count 4-string
- String spacing 19.3 mm (0.76 in)
- String spread 57.9 mm (2.28 in)
- Plate width 105 mm (4.134 in)
- Plate depth 83 mm (3.268 in)
- Mount hole spacing 93 mm (3.661 in)
- Mount pattern Two primary side mounting holes, 93 mm center-to-center
- Saddle material Steel
- Saddle diameter 19.2 mm (0.756 in)
- Hole diameter φ9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Steel saddles for stable sustain and setup
- Individual saddle forward/back intonation adjustment
- Two-point 93 mm mount pattern — verify against your body template
- Wide finish palette for OEM color matching
About measurements
- String spacing
-
19.3 mm (0.76 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
93 mm (3.661 in)
Center-to-center distance between mounting holes on the bridge plate.
