Bass Bridges
Request a quote → BA-2001

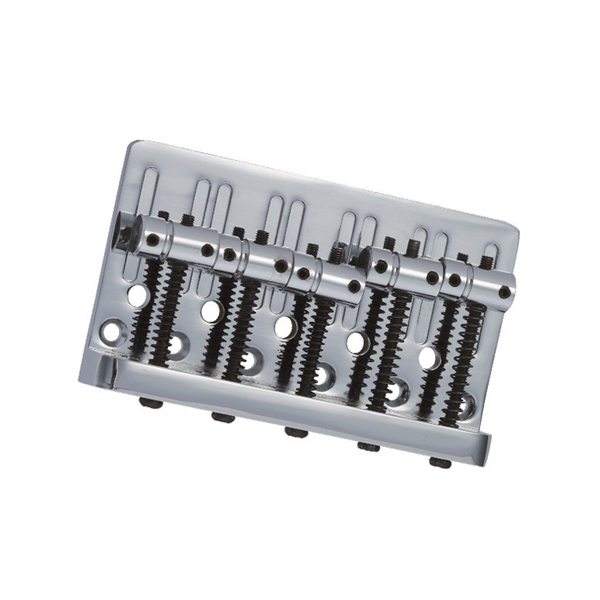

BA-2001
BA-2001
Loading 3D model…
Loading 3D model…
Description

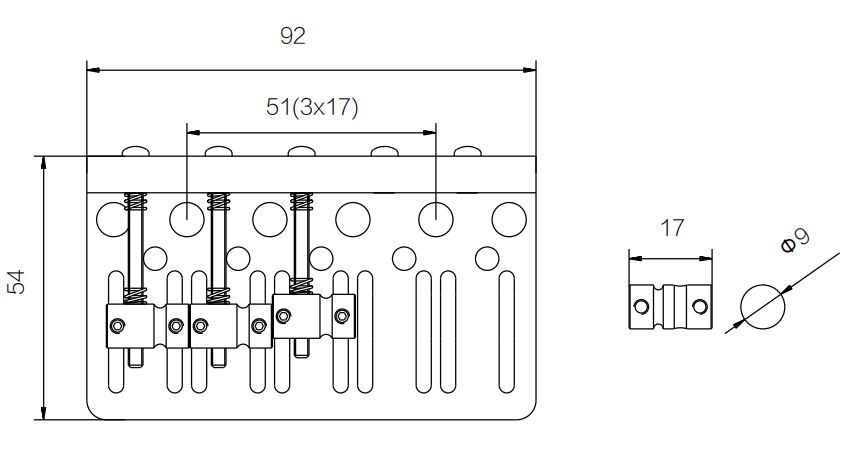

BA-2001 is a 4-string bass bridge with steel barrel saddles, 17 mm string spacing (51 mm spread), and a 92 × 54 mm plate.
Bridge specs
- String count 4-string
- String spacing 17 mm (0.669 in)
- String spread 51 mm (2.008 in)
- Plate width 92 mm (3.622 in)
- Plate depth 54 mm (2.126 in)
- Saddle material Steel
- Saddle diameter 9 mm (0.354 in)
- Saddle height 17 mm (0.669 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Steel φ9 mm barrel saddles
- 17 mm string spacing
About measurements
- String spacing
-
17 mm (0.669 in)
Center-to-center distance between adjacent strings at the bridge.
