Description

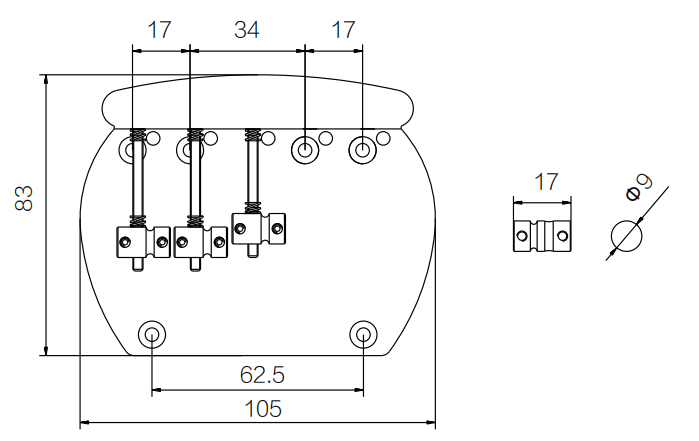

BA-2004 is a 5-string bass bridge with zinc saddles, 17 mm string spacing, and a curved 105 × 83 mm plate with 62.5 mm bottom mount spacing.
Bridge specs
- String count 5-string
- String spacing 17 mm (0.669 in)
- String spread 68 mm (2.677 in)
- Plate width 105 mm (4.134 in)
- Plate depth 83 mm (3.268 in)
- Mount hole spacing 62.5 mm (2.461 in)
- Saddle material Zinc alloy
- Saddle diameter 17 mm (0.669 in)
- Hole diameter φ9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Curved shield plate
- 17 mm flush-fit saddles
About measurements
- String spacing
-
17 mm (0.669 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
62.5 mm (2.461 in)
Center-to-center distance between mounting holes on the bridge plate.
