Description

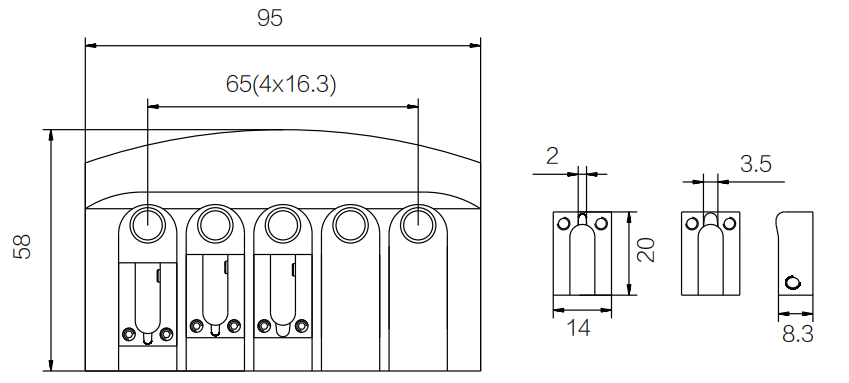

BA-2005 is a 5-string bass bridge with zinc saddles, 16.3 mm string spacing (65 mm spread), and a 95 × 58 mm plate.
Bridge specs
- String count 5-string
- String spacing 16.3 mm (0.642 in)
- String spread 65 mm (2.559 in)
- Plate width 95 mm (3.74 in)
- Plate depth 58 mm (2.283 in)
- Saddle material Zinc alloy
- Saddle diameter 14 mm (0.551 in)
- Saddle height 8.3 mm (0.327 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 5-string 16.3 mm spacing
- 2 mm string groove
About measurements
- String spacing
-
16.3 mm (0.642 in)
Center-to-center distance between adjacent strings at the bridge.
