Description

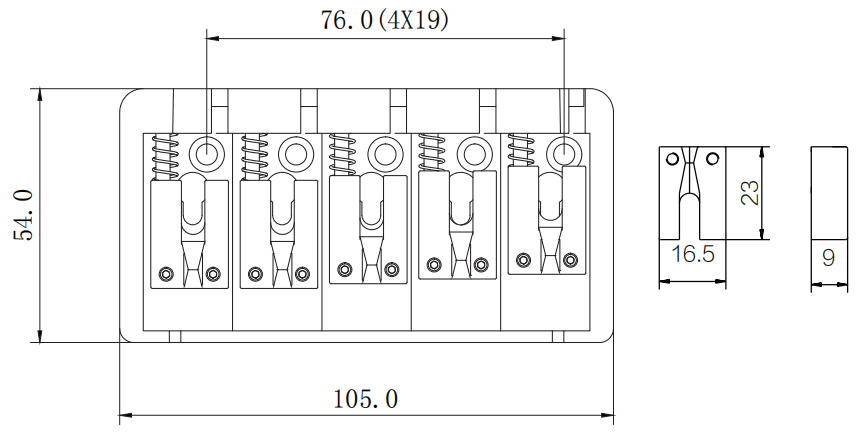

BA-2006 is a 5-string bass bridge with zinc saddles, 19 mm string spacing (76 mm spread), and a 105 × 54 mm plate.
Bridge specs
- String count 5-string
- String spacing 19 mm (0.748 in)
- String spread 76 mm (2.992 in)
- Plate width 105 mm (4.134 in)
- Plate depth 54 mm (2.126 in)
- Saddle material Zinc alloy
- Saddle diameter 16.5 mm (0.65 in)
- Saddle height 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 5-string 19 mm spacing
- Top-load saddle slots
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
