Bass Bridges
Request a quote → BA-2007
BA-2007
BA-2007
Loading 3D model…
Loading 3D model…
Description

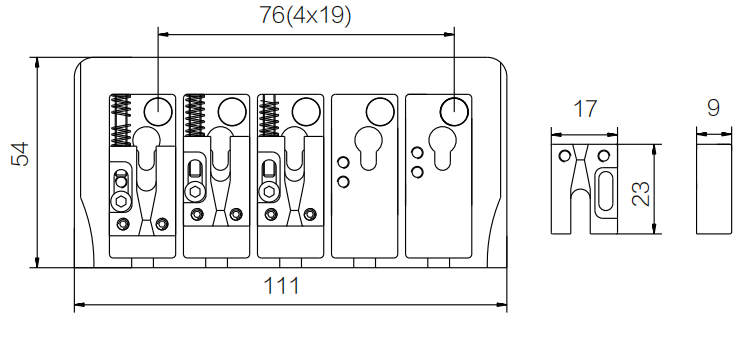

BA-2007 is a 5-string bass bridge with zinc saddles, 19 mm string spacing (76 mm spread), and an 111 × 54 mm plate.
Bridge specs
- String count 5-string
- String spacing 19 mm (0.748 in)
- String spread 76 mm (2.992 in)
- Plate width 111 mm (4.37 in)
- Plate depth 54 mm (2.126 in)
- Saddle material Zinc alloy
- Saddle diameter 17 mm (0.669 in)
- Saddle height 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Wide 111 mm plate
- Keyhole string slots
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
