Description

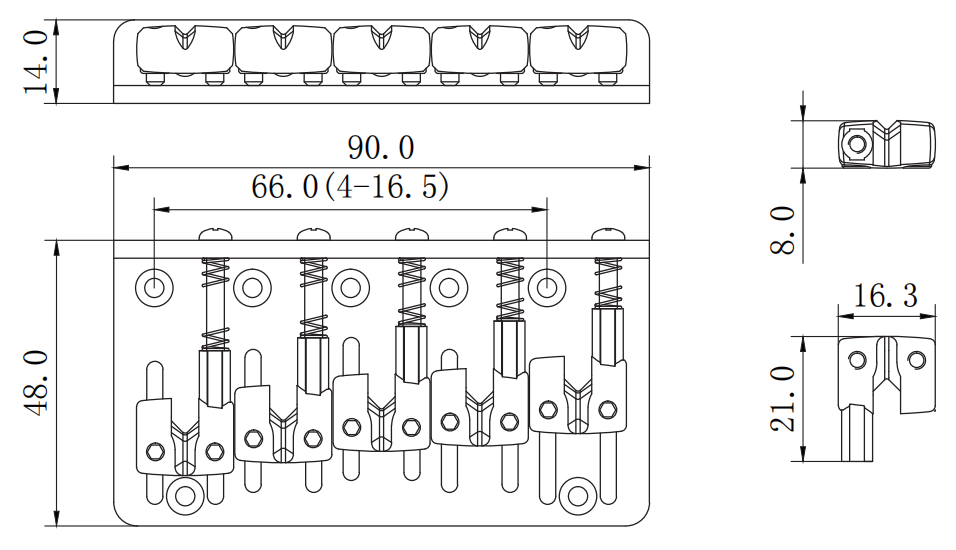

BA-2008 is a 5-string bass bridge with zinc saddles, 16.5 mm string spacing (66 mm spread), and a 90 × 48 mm plate with five-hole front mount.

String count 5-string
String spacing 16.5 mm (0.65 in)
String spread 66 mm (2.598 in)
Plate width 90 mm (3.543 in)
Plate depth 48 mm (1.89 in)
Mount hole spacing 66 mm (2.598 in)
Saddle material Zinc alloy
Saddle diameter 16.3 mm (0.642 in)
Saddle height 8 mm (0.315 in)
Overall height 14 mm (0.551 in)

String spacing

16.5 mm (0.65 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

66 mm (2.598 in)

Center-to-center distance between mounting holes on the bridge plate.
