BA-2009
BA-2009
Loading 3D model…
Loading 3D model…
Description

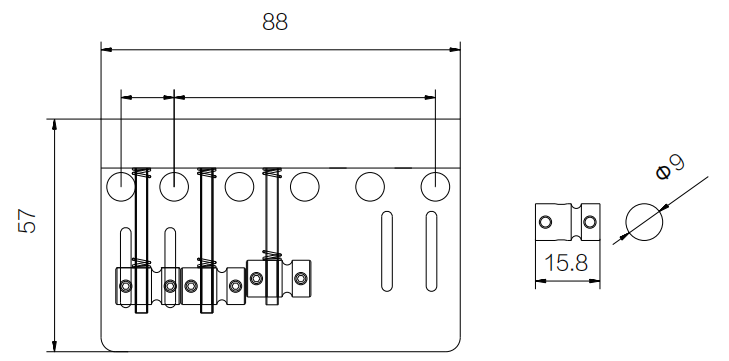

BA-2009 is a 5-string bass bridge with steel barrel saddles, ~15.8 mm string spacing, and an 88 × 57 mm plate with six top mount holes.
Bridge specs
- String count 5-string
- String spacing 15.8 mm (0.622 in)
- String spread 63.2 mm (2.488 in)
- Plate width 88 mm (3.465 in)
- Plate depth 57 mm (2.244 in)
- Saddle material Steel
- Saddle diameter 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Steel φ9 mm barrel saddles
- Six-hole top mount row
About measurements
- String spacing
-
15.8 mm (0.622 in)
Center-to-center distance between adjacent strings at the bridge.
