BA-2010
BA-2010
Loading 3D model…
Loading 3D model…
Description

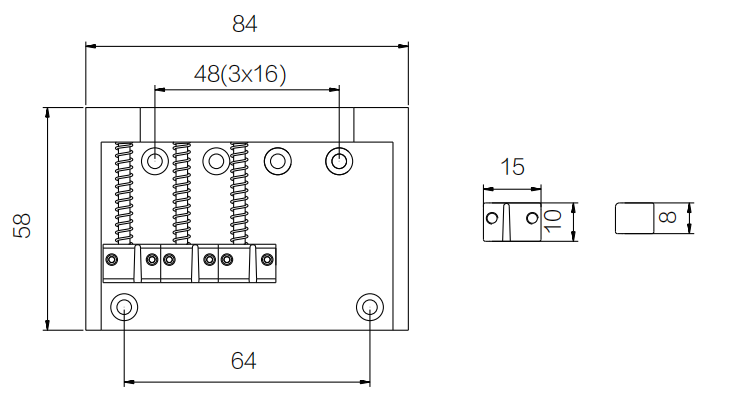

BA-2010 is a 4-string bass bridge with zinc block saddles, 16 mm string spacing (48 mm spread), and an 84 × 58 mm plate.
Bridge specs
- String count 4-string
- String spacing 16 mm (0.63 in)
- String spread 48 mm (1.89 in)
- Plate width 84 mm (3.307 in)
- Plate depth 58 mm (2.283 in)
- Mount hole spacing 64 mm (2.52 in)
- Mount pattern Bottom holes 64 mm; top row 48 mm spread
- Saddle material Zinc alloy
- Saddle diameter 15 mm (0.591 in)
- Saddle height 8 mm (0.315 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 16 mm string spacing
- Raised intonation screw wall
About measurements
- String spacing
-
16 mm (0.63 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
64 mm (2.52 in)
Center-to-center distance between mounting holes on the bridge plate.
