Bass Bridges
Request a quote → BA-2012
BA-2012
BA-2012
Loading 3D model…
Loading 3D model…
Description
BA-2012 is a 4-string bass bridge with zinc saddles, 19 mm string spacing, and a 100 × 63.5 mm plate with four inline mount holes.

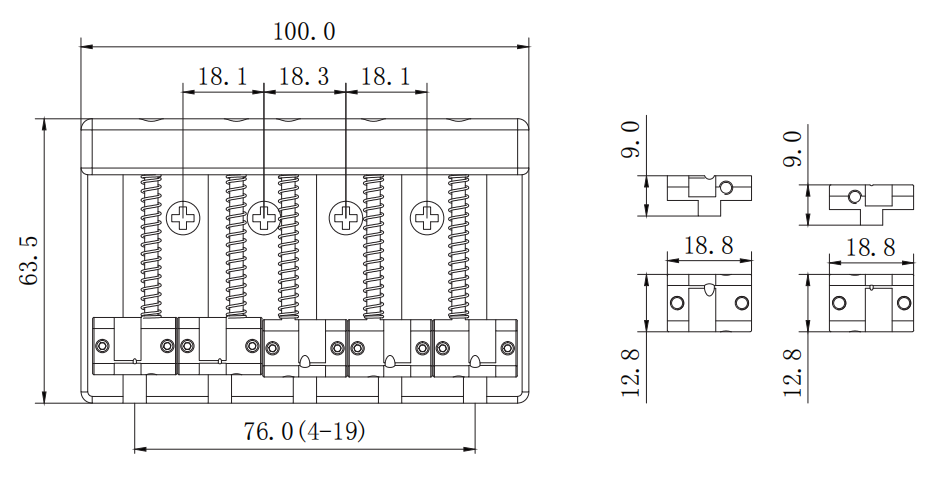

Bridge specs
- String count 4-string
- String spacing 19 mm (0.748 in)
- String spread 57 mm (2.244 in)
- Plate width 100 mm (3.937 in)
- Plate depth 63.5 mm (2.5 in)
- Mount pattern Four mount holes on 18.1 / 18.3 / 18.1 mm pitch
- Saddle material Zinc alloy
- Saddle diameter 18.8 mm (0.74 in)
- Saddle height 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 19 mm string spacing
- Block saddles with center notch
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Four mount holes on 18.1 / 18.3 / 18.1 mm pitch
Center-to-center distance between mounting holes on the bridge plate.
