Bass Bridges
Request a quote → BA-3002
BA-3002
BA-3002
Loading 3D model…
Loading 3D model…
Description

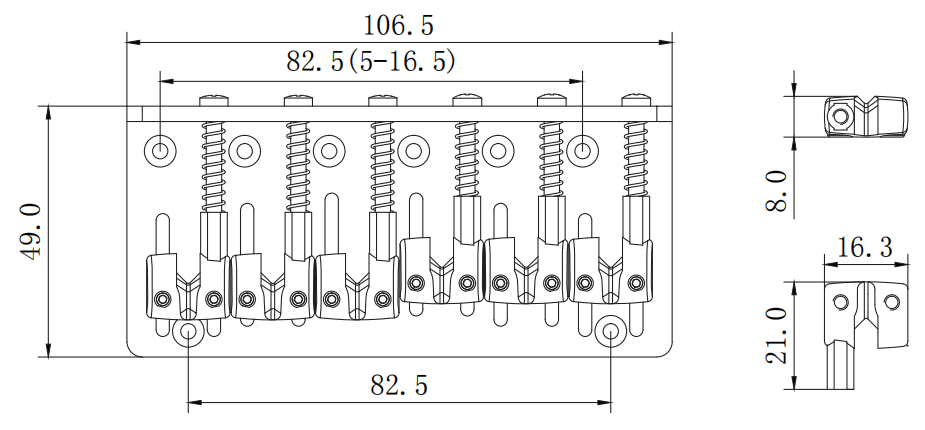

BA-3002 is a 6-string bass bridge with zinc saddles, 16.5 mm string spacing (82.5 mm spread), and a 106.5 × 49 mm plate.
Bridge specs
- String count 6-string
- String spacing 16.5 mm (0.65 in)
- String spread 82.5 mm (3.248 in)
- Plate width 106.5 mm (4.193 in)
- Plate depth 49 mm (1.929 in)
- Mount hole spacing 82.5 mm (3.248 in)
- Saddle material Zinc alloy
- Saddle diameter 16.3 mm (0.642 in)
- Saddle height 8 mm (0.315 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 6-string 16.5 mm spacing
- Four top auxiliary mount holes
About measurements
- String spacing
-
16.5 mm (0.65 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
82.5 mm (3.248 in)
Center-to-center distance between mounting holes on the bridge plate.
