Non tremolo guitar bridegs
Request a quote → BA-3003
BA-3003
BA-3003
Loading 3D model…
Loading 3D model…
Description
BA-3003 is a compact 4-string bass bridge with zinc saddles, 21 mm top mount spacing, and a 94.5 × 37.4 mm low-profile plate.

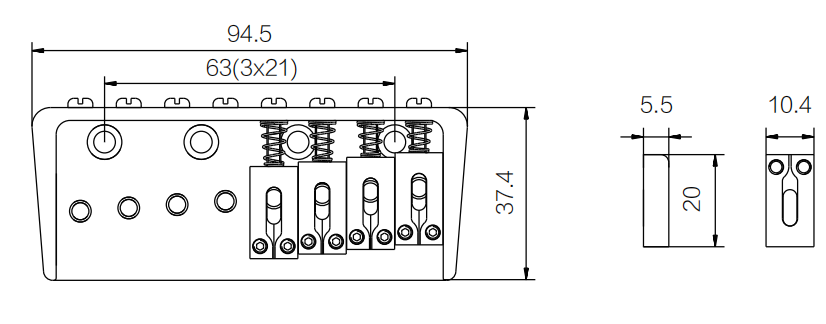

Bridge specs
- String count 4-string
- String spacing 21 mm (0.827 in)
- String spread 63 mm (2.48 in)
- Plate width 94.5 mm (3.72 in)
- Plate depth 37.4 mm (1.472 in)
- Mount hole spacing 63 mm (2.48 in)
- Mount pattern Four top holes on 21 mm pitch (63 mm total)
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 5.5 mm (0.217 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Low-profile 37.4 mm depth
- Compact OEM route
About measurements
- String spacing
-
21 mm (0.827 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
63 mm (2.48 in)
Center-to-center distance between mounting holes on the bridge plate.
