Non tremolo guitar bridegs
Request a quote → BG-2007
BG-2007
BG-2007
Loading 3D model…
Loading 3D model…
Description

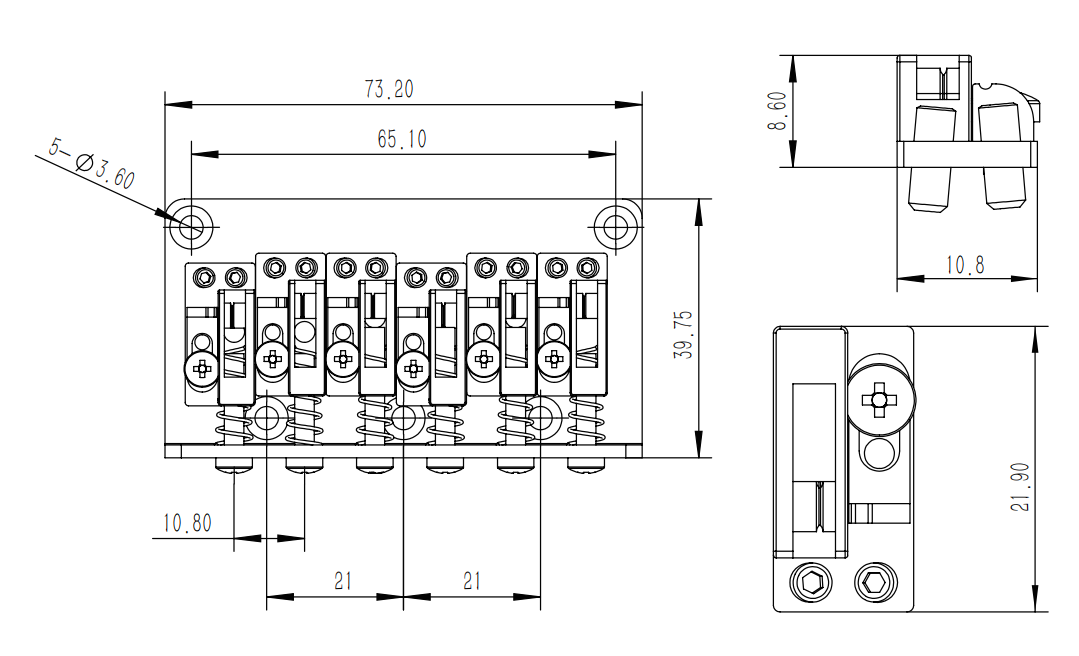

BG-2007 is a 6-string fixed bridge with 10.8 mm spacing, 73.2 × 39.75 mm plate, and five M3.6 mount holes on 65.1 mm spread.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 73.2 mm (2.882 in)
- Plate depth 39.75 mm (1.565 in)
- Mount hole spacing 65.1 mm (2.563 in)
- Saddle material Zinc alloy
- Saddle diameter 10.8 mm (0.425 in)
- Saddle height 8.6 mm (0.339 in)
- Hole diameter φ3.6 mm (0.142 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Five-hole top mount
- Low-profile 8.6 mm saddle height
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
65.1 mm (2.563 in)
Center-to-center distance between mounting holes on the bridge plate.
