Description

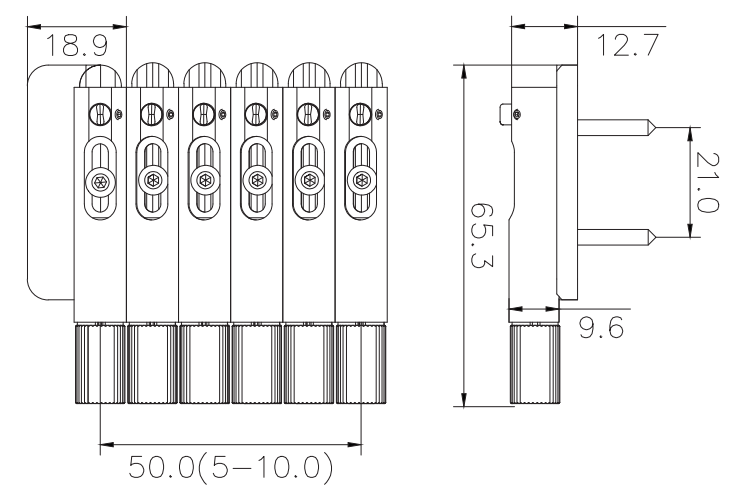

BG-3005 is a headless 6-string module bridge with 10 mm spacing, 65.3 mm height, and 50 mm spread across six units.
Module specs
- Configuration Headless bridge/tuner module
- Module length 65.3 mm (2.571 in)
- Module width 12.7 mm (0.5 in)
- Pin spacing 21 mm (0.827 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Six individual locking modules
- Rear pin spacing 21 mm
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
