Non tremolo guitar bridegs
Request a quote → BG-3006
BG-3006
BG-3006
Loading 3D model…
Loading 3D model…
Description

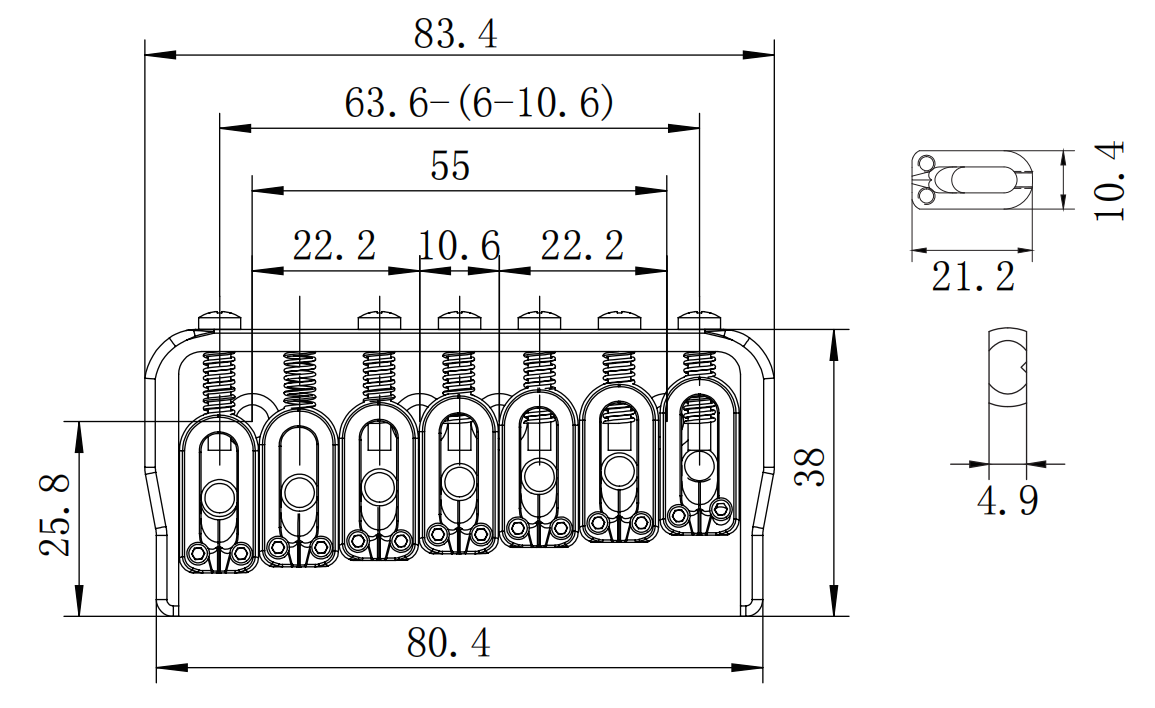

BG-3006 is a 7-string fixed bridge with 10.6 mm spacing, 83.4 × 38 mm plate, and 63.6 mm outer mount spread.
Bridge specs
- String count 7-string
- String spacing 10.6 mm (0.417 in)
- Plate width 83.4 mm (3.283 in)
- Plate depth 38 mm (1.496 in)
- Mount hole spacing 63.6 mm (2.504 in)
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 21.2 mm (0.835 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 7-string import spacing
- Low 38 mm depth plate
About measurements
- String spacing
-
10.6 mm (0.417 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
63.6 mm (2.504 in)
Center-to-center distance between mounting holes on the bridge plate.
