Non tremolo guitar bridegs
Request a quote → BG-3007
BG-3007
BG-3007
Loading 3D model…
Loading 3D model…
Description

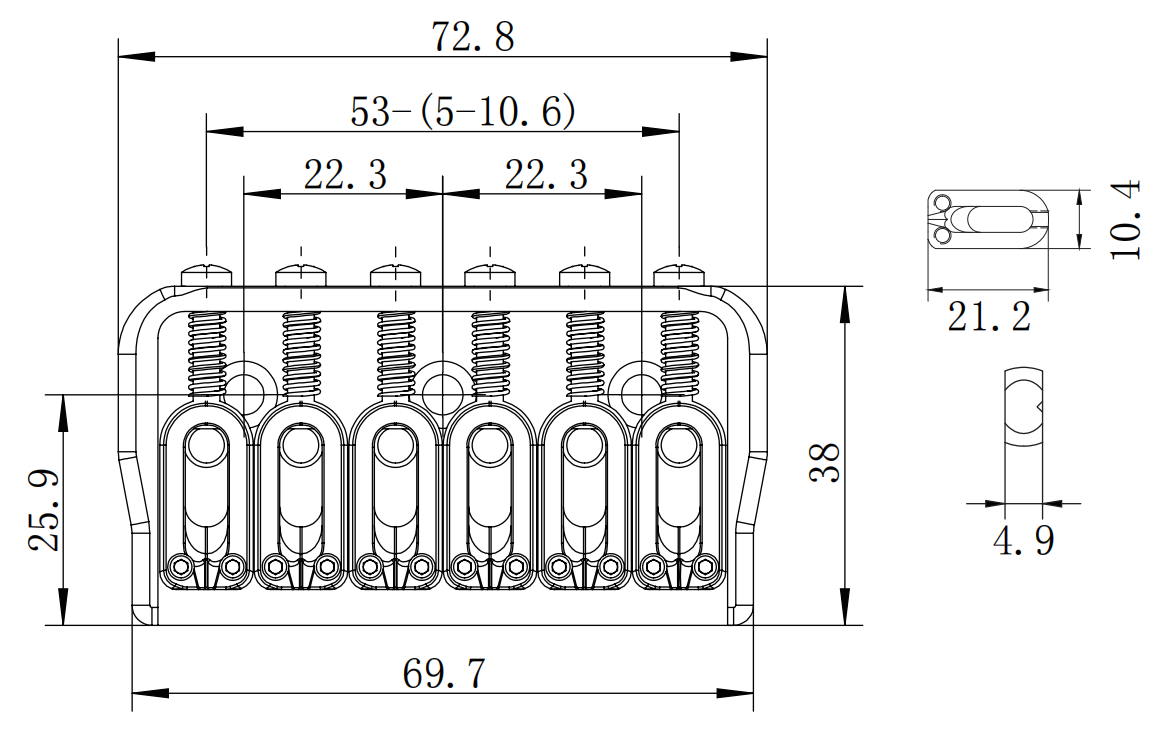

BG-3007 is a 6-string fixed bridge with 10.6 mm spacing, 72.8 × 38 mm plate, and 53 mm five-hole mount pattern.
Bridge specs
- String count 6-string
- String spacing 10.6 mm (0.417 in)
- String spread 53 mm (2.087 in)
- Plate width 72.8 mm (2.866 in)
- Plate depth 38 mm (1.496 in)
- Mount hole spacing 53 mm (2.087 in)
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Compact 38 mm depth
- Five-hole mount on 10.6 mm pitch
About measurements
- String spacing
-
10.6 mm (0.417 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
53 mm (2.087 in)
Center-to-center distance between mounting holes on the bridge plate.
