Tailpieces
Request a quote → BG-6011
BG-6011
BG-6011
Loading 3D model…
Loading 3D model…
Description

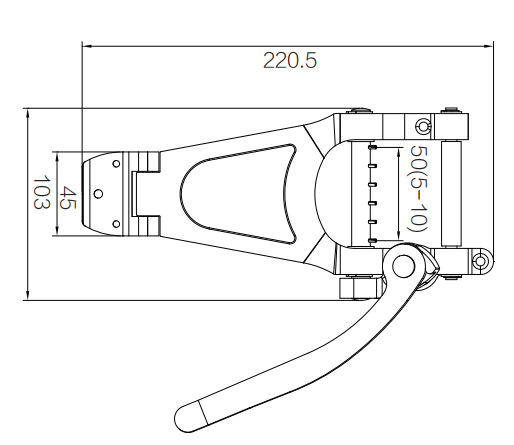

BG-6011 is a compact Bigsby-style vibrato, 220.5 mm long, 10 mm spacing (50 mm spread), and 45 mm hinge plate.
Vibrato tailpiece specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Overall length 220.5 mm (8.681 in)
- Overall width 103 mm (4.055 in)
- Mount pattern Hinge plate 45 mm wide; 3-hole mount
Hardware
- Material Cast aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Triangular frame cutout
- Roller string bar
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Hinge plate 45 mm wide; 3-hole mount
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the tailpiece.
