Tailpieces
Request a quote → BG-6013
BG-6013
BG-6013
Loading 3D model…
Loading 3D model…
Description

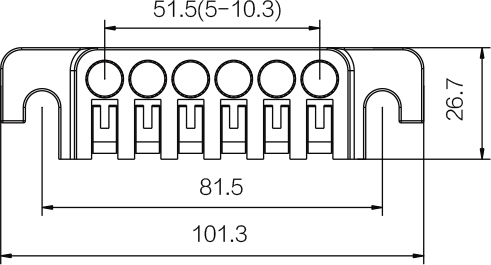

BG-6013 is a 6-string wraparound bridge with 10.3 mm spacing (51.5 mm spread), 101.3 × 26.7 mm plate, and 81.5 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.3 mm (0.406 in)
- String spread 51.5 mm (2.028 in)
- Plate width 101.3 mm (3.988 in)
- Plate depth 26.7 mm (1.051 in)
- Post spacing 81.5 mm (3.209 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Wraparound barrel saddles
- U-slot post mount
About measurements
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the bridge.
