Tailpieces
Request a quote → BG-6012
BG-6012
BG-6012
Loading 3D model…
Loading 3D model…
Description

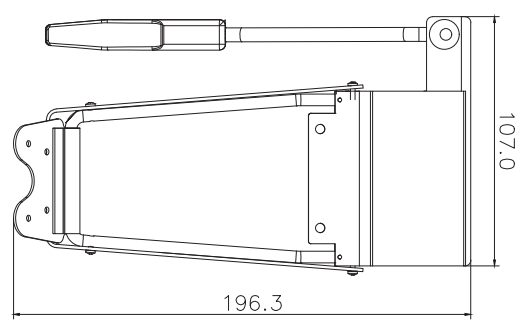

BG-6012 is a vibrato tailpiece with 196.3 mm length, 107 mm width, and 4+4 hole mount pattern.
Vibrato tailpiece specs
- String count 6-string
- Overall length 196.3 mm (7.728 in)
- Overall width 107 mm (4.213 in)
- Mount pattern Four holes on end plate + four on main body
Hardware
- Material Cast aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered main plate
- Integrated trem arm
About measurements
- Mount hole spacing
-
Four holes on end plate + four on main body
Center-to-center distance between mounting holes on the bridge plate.
