Description

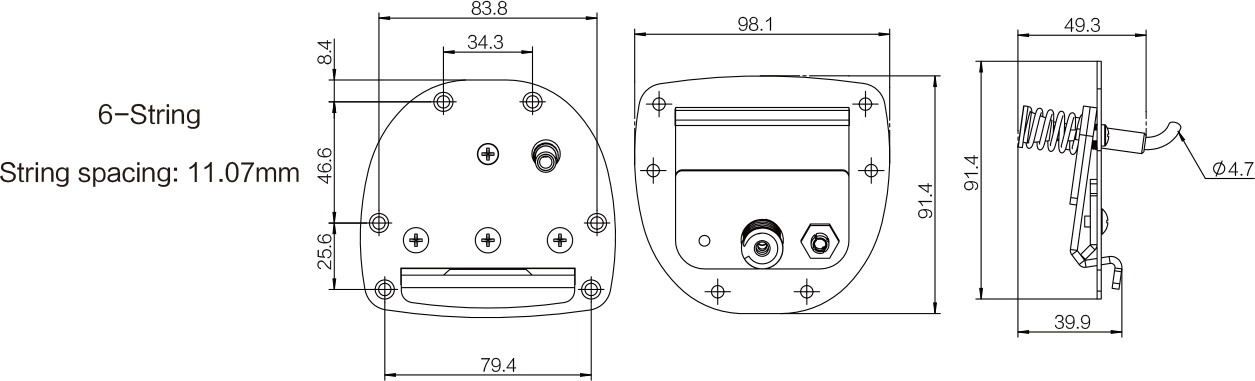

BG-6017 is a Jazzmaster-style floating vibrato with 11.07 mm string spacing, 83.8 mm plate width, and 91.4 mm height.
Tremolo bridge specs
- String count 6-string
- String spacing 11.07 mm (0.436 in)
- String spread 55.35 mm (2.179 in)
- Plate width 83.8 mm (3.299 in)
- Plate depth 91.4 mm (3.598 in)
- Mount pattern Six perimeter mount holes; max depth 49.3 mm
- Saddle material Zinc alloy
- Hole diameter φ4.7 mm (0.185 in)
- Overall height 91.4 mm (3.598 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Offset-guitar floating trem
- Coil spring unit
About measurements
- String spacing
-
11.07 mm (0.436 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Six perimeter mount holes; max depth 49.3 mm
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
