Knobs
Request a quote → C-1001-2
C-1001-2

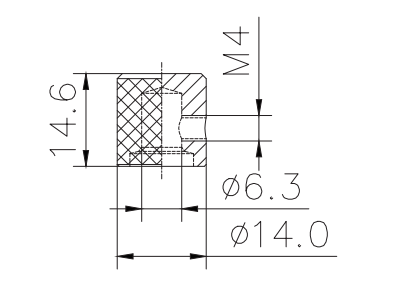

Technical drawingC-1001-2
Loading 3D model…
Loading 3D model…
Description
Knurled knob Φ14.0 mm × 14.6 mm with a Φ6.3 mm shaft bore and M4 side set screw.
Knob / cap specs
- Outer diameter φ14 mm
- Inner diameter φ6.3 mm
- Body height 14.6 mm (0.575 in)
- Overall height 14.6 mm (0.575 in)
- Thread M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled exterior surface
- Side-mounted M4 set screw hole
