Knobs
Request a quote → C-1003
C-1003
C-1003
Loading 3D model…
Loading 3D model…
Description

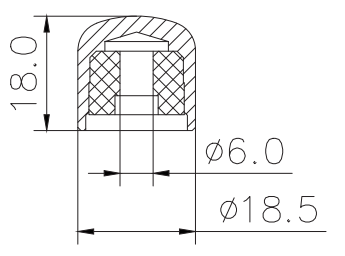

Cylindrical knob Φ18.5 mm × 18.0 mm with a Φ6.0 mm shaft bore.
Knob / cap specs
- Outer diameter φ18.5 mm
- Body height 18 mm (0.709 in)
- Overall height 18 mm (0.709 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Cylindrical profile
- Internal insert for shaft mounting
