Description

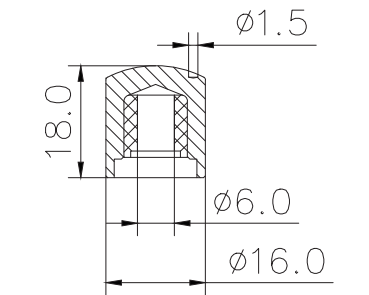

Domed knob Φ16.0 mm × 18.0 mm with a Φ6.0 mm shaft bore and Φ1.5 mm top indicator hole.
Knob / cap specs
- Outer diameter φ16 mm
- Inner diameter φ6 mm
- Body height 18 mm (0.709 in)
- Overall height 18 mm (0.709 in)
- Hole diameter φ1.5 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Domed top profile
- Internal insert sleeve for 6 mm shaft
