Description

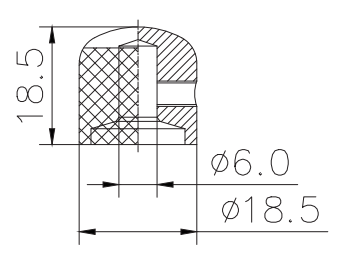

Knurled domed knob Φ18.5 mm × 18.5 mm with a Φ6.0 mm center bore.
Knob / cap specs
- Outer diameter φ18.5 mm
- Body height 18.5 mm (0.728 in)
- Overall height 18.5 mm (0.728 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled surface for grip
- Domed top with side set-screw bore
