Description

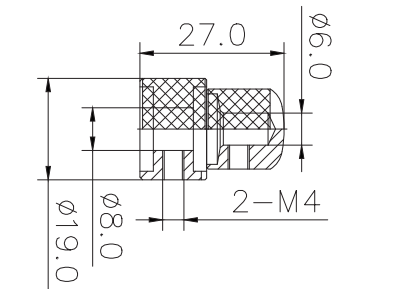

Two-tier knurled shaft adapter Φ19.0 mm × 27.0 mm with Φ8.0 / Φ6.0 mm stepped bore and 2-M4 set screws.
Knob / cap specs
- Outer diameter φ19 mm
- Inner diameter φ8 mm
- Body height 27 mm (1.063 in)
- Overall height 27 mm (1.063 in)
- Hole diameter φ6 mm
- Thread 2-M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled two-tier stepped cylindrical design
- Dual M4 radial set-screw holes
