Knobs
Request a quote → C-1030
C-1030
C-1030
Loading 3D model…
Loading 3D model…
Description

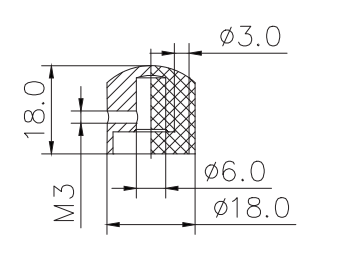

Knurled domed knob Φ18.0 mm × 18.0 mm with Φ6.0 mm shaft bore, Φ3.0 mm top bore, and M3 side set screw.
Knob / cap specs
- Outer diameter φ18 mm
- Inner diameter φ6 mm
- Body height 18 mm (0.709 in)
- Overall height 18 mm (0.709 in)
- Hole diameter φ3 mm
- Thread M3
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled exterior with domed top
- Stepped internal bore with M3 set screw
