Description

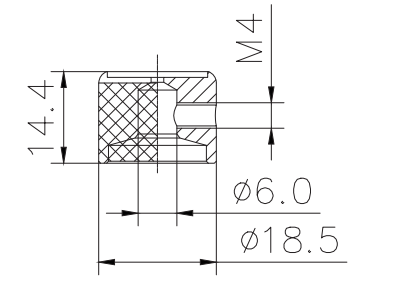

Knurled cylindrical knob Φ18.5 mm × 14.4 mm with a Φ6.0 mm shaft bore and M4 side set screw.
Knob / cap specs
- Outer diameter φ18.5 mm
- Inner diameter φ6 mm
- Body height 14.4 mm (0.567 in)
- Overall height 14.4 mm (0.567 in)
- Thread M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled cylindrical profile
- Side-mounted M4 set screw
