Knobs
Request a quote → C-2010-T
C-2010-T

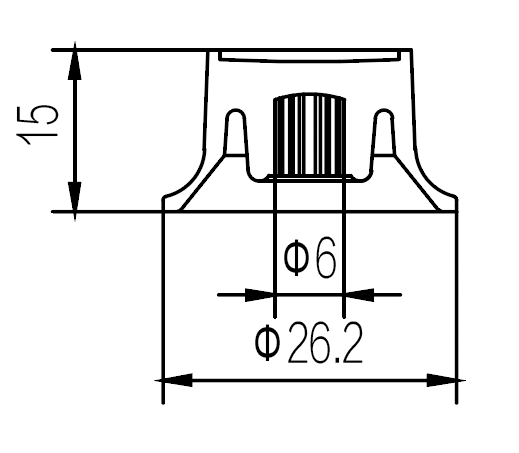

Technical drawingC-2010-T
Description
Bell-style pot knob Φ26.2 mm base × 15.0 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ26.2 mm
- Body height 15 mm (0.591 in)
- Overall height 15 mm (0.591 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with flat top
- Splined 6 mm pot shaft bore
