Knobs
Request a quote → C-2012
C-2012
C-2012
Loading 3D model…
Loading 3D model…
Description

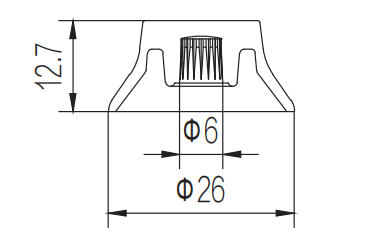

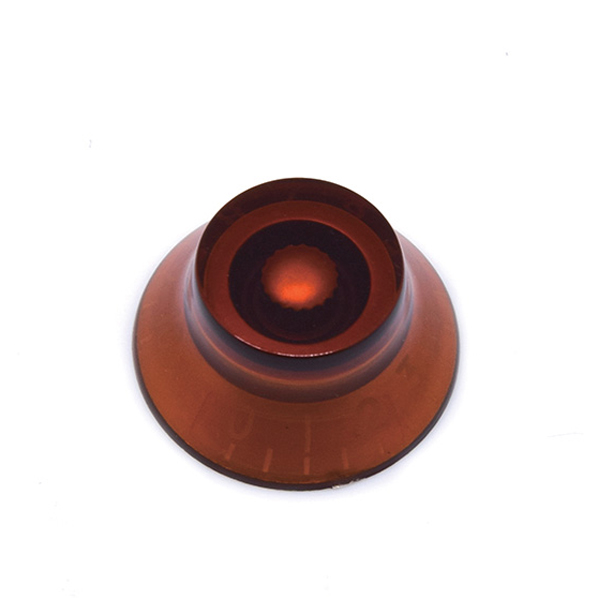

Bell control knob Φ26 × 12.7 mm with Φ6 splined shaft bore.
Knob / cap specs
- Outer diameter φ26 mm
- Overall height 12.7 mm (0.5 in)
- Hole diameter φ6 mm
- Reference Splined Φ6 mm shaft bore
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell / top-hat profile with flared base
- Press-fit splined potentiometer shaft bore
About measurements
- Mount hole spacing
-
Splined Φ6 mm shaft bore
Center-to-center distance between mounting holes on the bridge plate.
