Knobs
Request a quote → C-2011-T
C-2011-T

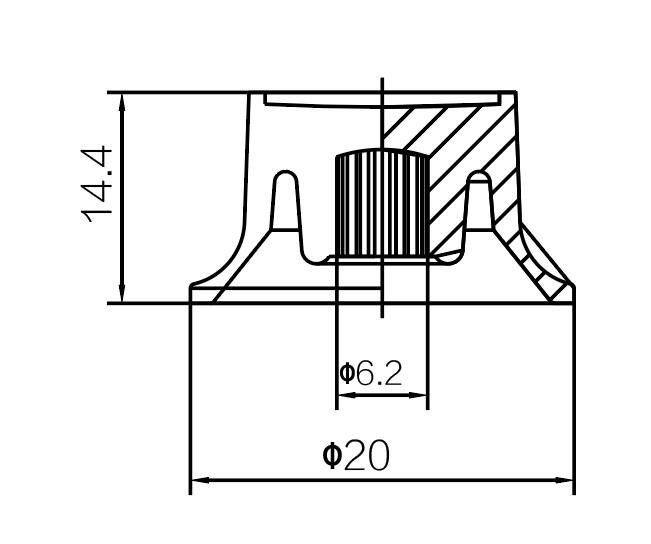

Technical drawingC-2011-T
Description
Bell-style pot knob Φ20.0 mm base × 14.4 mm with a Φ6.2 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ20 mm
- Body height 14.4 mm (0.567 in)
- Overall height 14.4 mm (0.567 in)
- Hole diameter φ6.2 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with flat top
- Splined 6.2 mm pot shaft bore
