Knobs
Request a quote → C-2011-V
C-2011-V

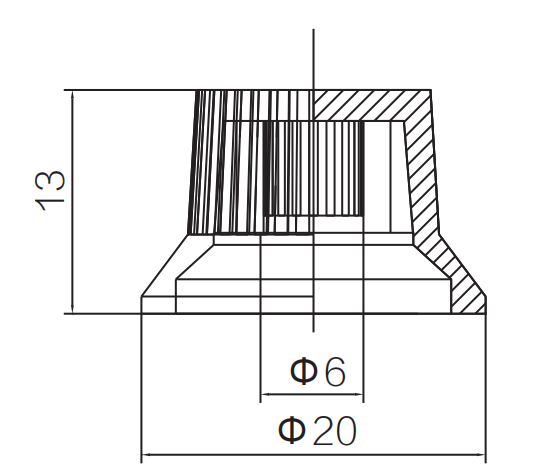

Technical drawingC-2011-V
Loading 3D model…
Loading 3D model…
Description
Knurled pot knob Φ20.0 mm base × 13.0 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ20 mm
- Body height 13 mm (0.512 in)
- Overall height 13 mm (0.512 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled cylindrical top with flared base
- Splined 6 mm pot shaft bore
