Description

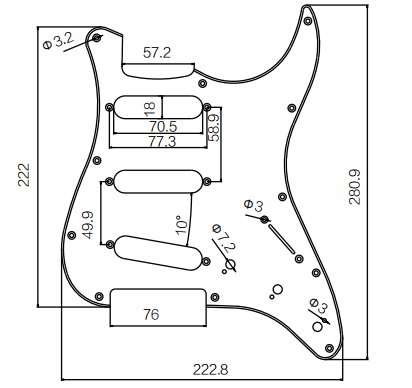

H-1001 is an 11-hole Stratocaster-style pickguard, 222.8 × 280.9 mm, with SSS single-coil cutouts 70.5 × 18 mm and perimeter mount holes φ3.2 mm.
Pickguard specs
- Overall width 222.8 mm (8.772 in)
- Overall length 280.9 mm (11.059 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 77.3 mm (3.043 in)
- Layout reference SSS layout; 11 perimeter mount holes φ3.2 mm; pickup screw spacing 77.3 mm; neck-to-middle 58.9 mm, middle-to-bridge 49.9 mm; bridge pickup 10°; neck pocket 57.2 mm; bridge cutout 76 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Slanted bridge single-coil cutout at 10°
- Control holes φ7.2 mm and φ3 mm with blade switch slot
About measurements
- Mount hole spacing
-
77.3 mm (3.043 in)
Center-to-center distance between mounting holes on the bridge plate.
